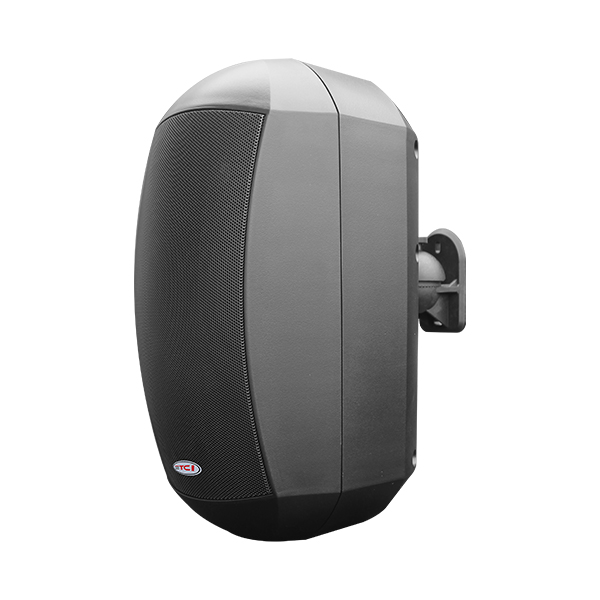

TCI-20SB Waterproof Wall Mount Speaker 20W
Features
- Model TCI-20SB
- Water-resistant IP66
- Power Rate 2.5W/5W/10W/20W
- 4” + 1” Speaker Driver (waterproof)
- For indoor and outdoor applications
- Black and white color available
- Adjustable mounting bracket supplied
- SPL: 87± 3Db 1W/1M
- Frequency Response: 80Hz - 20kHz
- Dimension (D*H) 146*138*238mm without bracket
- Material PP housing and bracket, alloy grille
- Powder Coated Iron Mesh
- Certified to CE standards
- Description
- Specifications
- Equipments
- Downloads
Description

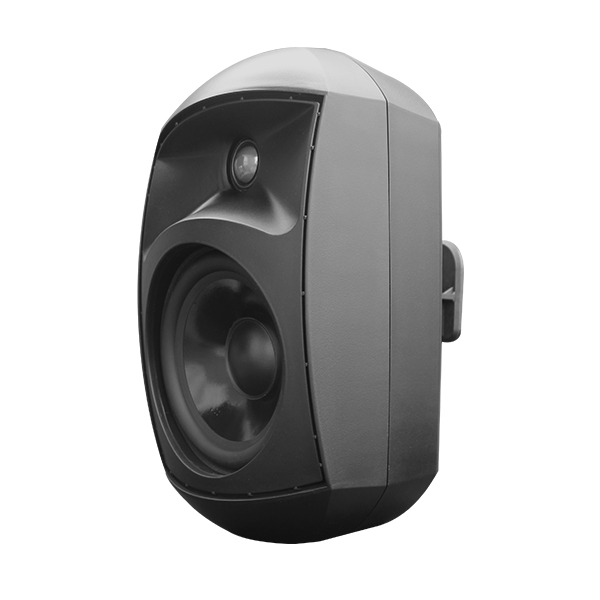

The Waterproof 2-Way Wall Speaker is designed for durability and performance in challenging environments. It features a polypropylene woofer with a rubber surround, ensuring long-lasting resilience and excellent sound quality. The silk dome tweeter, cooled with ferrofluid, provides enhanced performance and clarity.

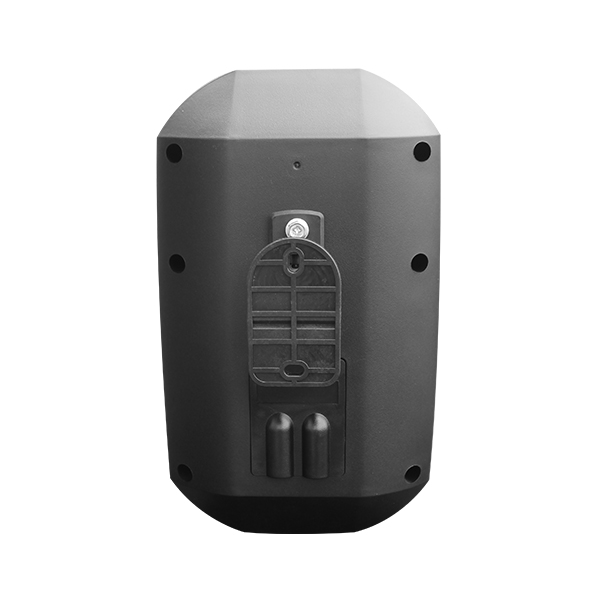

Built to withstand harsh conditions, this speaker meets the IP66 water resistance standard. It incorporates specially designed speaker drivers within a strong HIPS (High-Impact Polystyrene) cabinet, complemented by a robust alloy bracket for secure mounting.

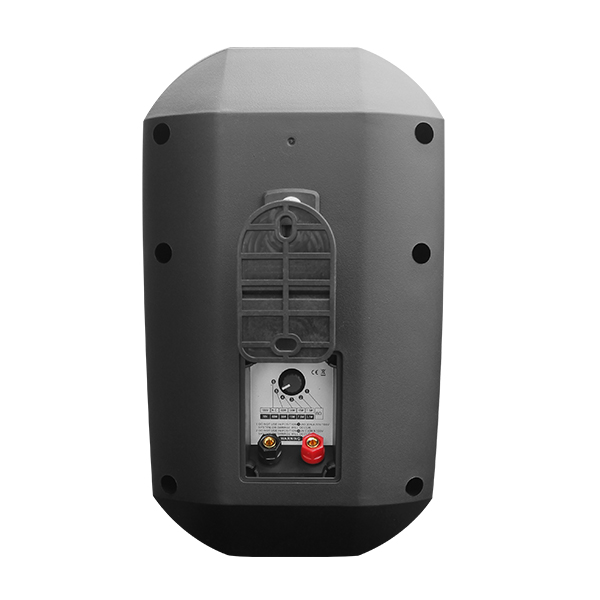

For installation flexibility, the speaker includes a rear knob that allows users to easily switch between different input options, including power tapping and 8 ohm, 70V, and 100V configurations. This versatility makes it suitable for a range of applications, from outdoor settings to industrial environments.
Model: |
TCI-20SB |
100V input: |
2.5W/5W/10W/20W |
70V input: |
1.25W/2.5W/5W/10W/20W |
8 Ohm input: |
20W |
IP Rated |
IP66 waterproof |
Sensitivity(1m/1W): |
87±3 dB |
Frequency Response: |
80Hz-20KHz |
Dimension(D*W*H) : |
146*138*238 mm (without bracket) |
Installation: |
Adjustable bracket |
Material: |
PP housing and bracket, alloy grille |
Woofer Driver: |
4"*1 (waterproof) |
Tweeter Driver: |
1"*1 (waterproof) |
Finish: |
White or Black |
Net Weight: |
1.80 kg |
Gross Weight: |
2.20 kg |
