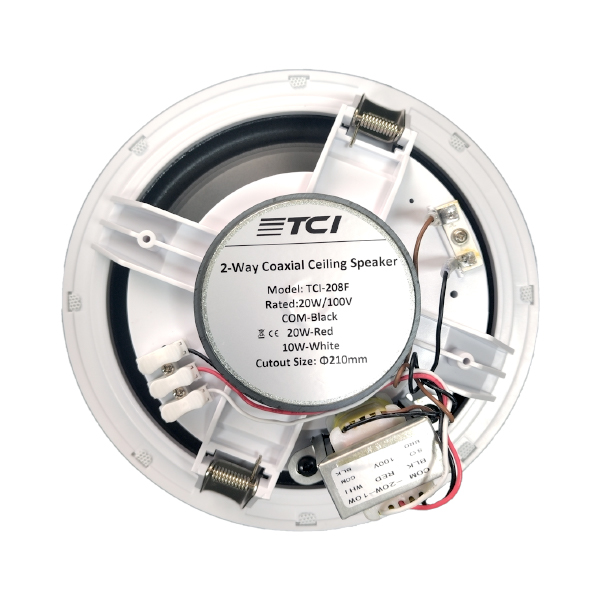

TCI-208F 2-WAY Coaxial Ceiling Speaker 20W
TCI-208F 2-WAY Coaxial Ceiling Speaker 20W
TCI-208F 2-WAY Coaxial Ceiling Speaker 20W
TCI-208F 2-WAY Coaxial Ceiling Speaker 20W

Features

  • Model TCI-208F
  • Frameless Aluminum Mesh Grille
  • 8” inch Woofer driver
  • 1” inch Tweeter driver
  • 70/100V Rated Power: 10W/20W
  • SPL: 93 ± 2Db at 100V 1M/1W
  • Frequency Response: 70Hz - 20kHz
  • Sensitivity 93±3dB
  • Dimension (D*H) Ø 232*92mm
  • Cutout size: Ø 210mm
  • Speaker driver 8” +1”
  • Material ABS enclosure, metal grille and clamps
  • In-ceiling quick installation by spring clip
  • Certified to CE standards
  • Description
  • Specifications
  • Equipments
  • Downloads

Description

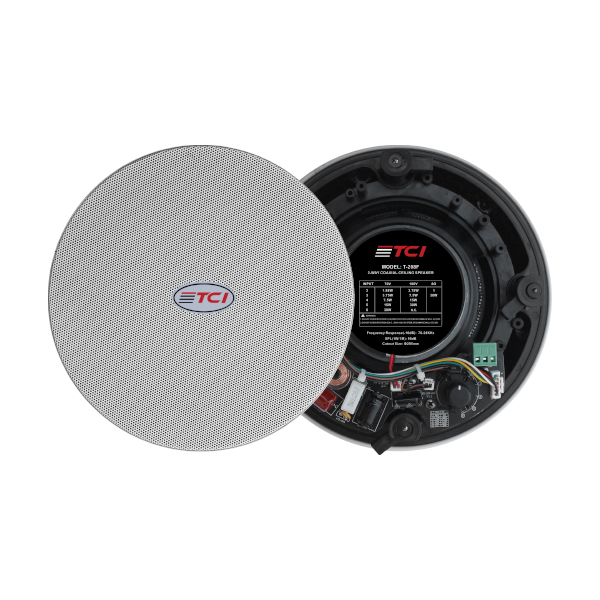

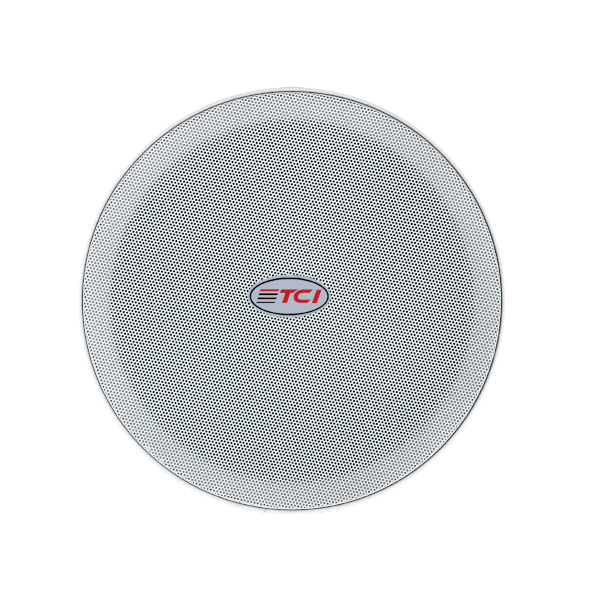

The TCI-208F Frameless Ceiling Speaker features a sleek, thin-edge cylindrical design with a carbon alloy aluminum mesh and RAL white coating, allowing it to blend seamlessly with any indoor decor.

It is equipped with a 8” + 1" 2-way speaker, incorporating a magnetic circuit housed in durable engineering plastic. The diaphragm is crafted from algae-derived materials using advanced pressing techniques, ensuring exceptional voice and music reproduction. The speaker can handle double its rated power for brief periods, enhancing reliability under extreme conditions, extending its lifespan, and minimizing the risk of faults or performance degradation.





Model

TCI-208F

Line Input

100V

Power Taps

BLACK-COM, RED-20W, WHITE-10W

Impedance

Red:500Ω, White:1KΩ

SPL(1W/1M)

93 dB

Freq. Response

70-20KHz

Woofer Driver

8"*1

Tweeter Driver

1"*1

Material

ABS enclosure, metal grille and clamps

Cutout Size

Φ 210mm

Dimension

Φ 232*92mm

Finish

White
