TCI-108 Ceiling Speaker 15W
Features
- Model TCI-108
- 8” inch Frameless

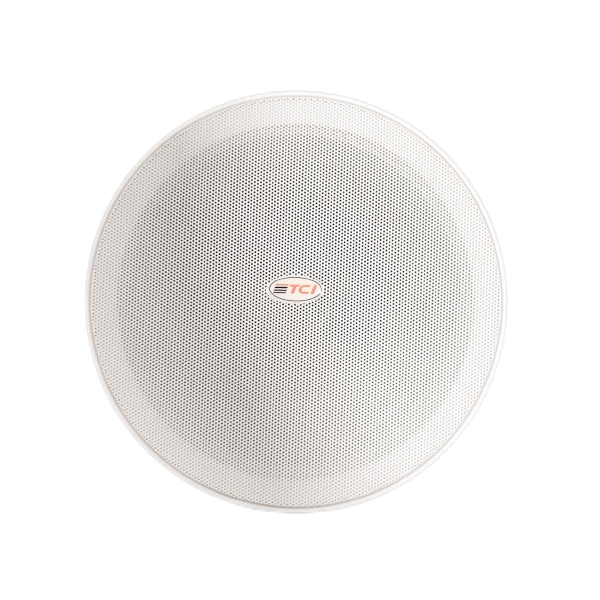

- Frameless Aluminum Mesh Grille
- 70/100V Rated Power: 7.5W/15W
- SPL: 99 ± 2Db at 100V 3W
- Frequency Response: 100Hz - 15kHz
- Sensitivity 93±3dB
- Dimension (D*H) Ø 232*90mm
- Cutout size: Ø 210mm
- Material ABS

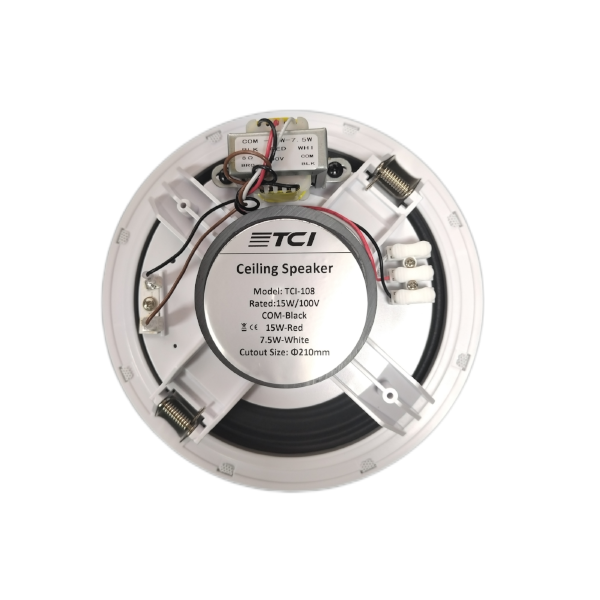

- Two speaker terminals, support different power
- In-ceiling quick installation by spring clip
- Certified to CE standards
- Description
- Specifications
- Equipments
- Downloads
Description
The TCI-108 is a surface-mount ceiling speaker with a built-in 70V/100V transformer. This high-voltage, low-current design allows for long-distance transmission and the parallel connection of multiple speakers. It features easy installation with a robust clip and is constructed from durable, non-deformable, and non-fading engineering plastic.
The TCI-108 is ideal for various environments, including schools, gymnasiums, public halls, parks, parking lots, railway stations, airports, residential communities, and retail spaces.
|
General Specification |
|
|
Model |
TCI-108 |
|
Frequency Response |
100-15KHz |
|
SPL |
99dB at 100V 3W |
|
Sensitivity |
93±3dB |
|
Power Handling |
15W |
|
Power Taps |
7.5W/15W |
|
Line input |
100V |
|
Hole for mounting |
Φ210mm |
|
Dimension(D*H) |
Φ232*90mm |
|
Physical Specification |
|
|
Material |
ABS (white) |
|
Grille |
Powder Coated Aluminum Mesh |
|
(White 9016) |
|
|
Component |
8" |
|
Finished Color |
White |
|
Unit Weight |
0.9Kg |
|
Speaker Specification |
|
|
Voice Coil Size |
PSV20.4*Φ0.12*2T |
|
DC Impedance |
7.2Ω |
|
Former |
Paper |
|
Magnet |
Ferrite(270g) |
|
Φ80*32*12(Y25) |
|
|
Basket |
ABS |
|
Cone Material |
Paper |
|
Spider |
Cloth |
|
Dust cap |
Paper Cup |
|
Net Weight |
680g |
