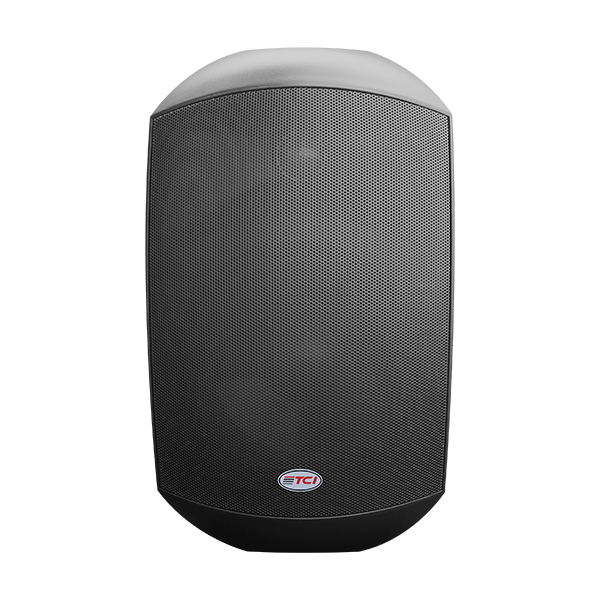

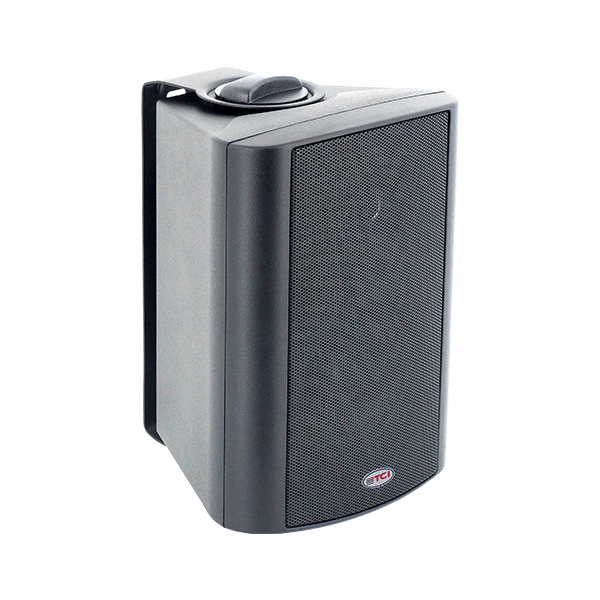

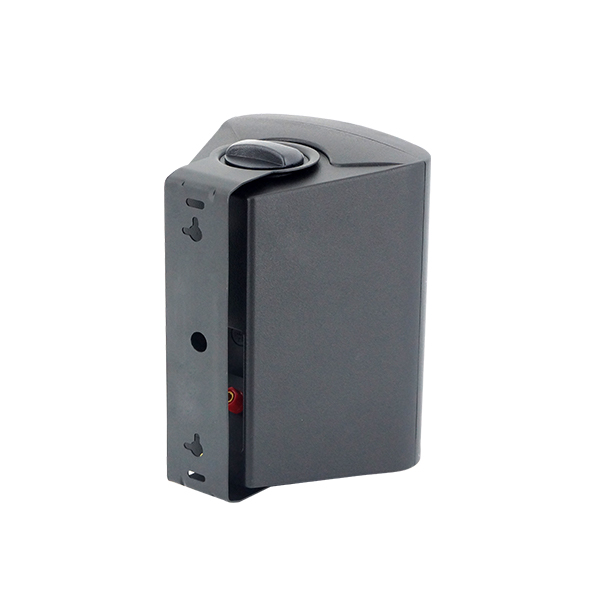

TCI-440B Wall Mount Speaker 40W
Features
- Model TCI-440B
- 6” PP Woofer
- 1” PEI Tweeter driver
- 100V Rated Power: 40W
- SPL: 88± 3Db 1W/1M
- Frequency Response: 70Hz - 20kHz
- Sensitivity 88±3dB
- Dimension (D*H) 215*190*284
- Material HIPS and Iron brackets
- Powder Coated Iron Mesh
- Certified to CE standards
- Description
- Specifications
- Equipments
- Downloads
Description
The TCI-440B is a wall-mounted speaker with a built-in 70V/100V transformer, designed to minimize line losses over long distances and enable easy parallel connection of multiple speakers.
Featuring a 2-way driver with wide frequency response and 40 watts RMS power output, it is well-suited for various applications. Made from durable engineering plastic, it ensures clear and resonant sound. Installation is straightforward and secure with the included mounting bracket.
This speaker is an ideal choice for industrial and commercial settings such as hotels, schools, offices, and factories where background music and paging are required
|
General Specification |
|
|
|
Model |
|
TCI-440B |
|
Frequency Response |
|
70Hz-20KHz |
|
Sensitivity |
|
88±3dB |
|
Rated power |
|
40W |
|
Line input |
|
100V |
|
Dimension(mm) |
|
215*190*284 |
|
Physical Specification |
|
|
|
Material |
|
HIPS |
|
Grill |
|
Powder Coated Iron Mesh |
|
Component(L.Speaker) |
|
6" PP Woofer |
|
Component(H.Speaker) |
|
1" PEI |
|
Finished Color |
|
White/Black |
|
Unit Weight |
|
3.32Kg |
|
Woofer Speaker Specification |
|
|
|
Voice Coil Size |
|
ASV 25.9 *Φ0.18*2T |
|
DC Impedance |
|
7.2Ω |
|
Former |
|
Asv |
|
Magnet |
|
Ferrite(400g) |
|
|
Φ80*Φ32*15(Y30) |
|
|
Basket |
|
Iron |
|
Cone Material |
|
PP |
|
Spider |
|
Cloth |
|
Dust cap |
|
PP |
|
Net Weight |
|
1Kg |
