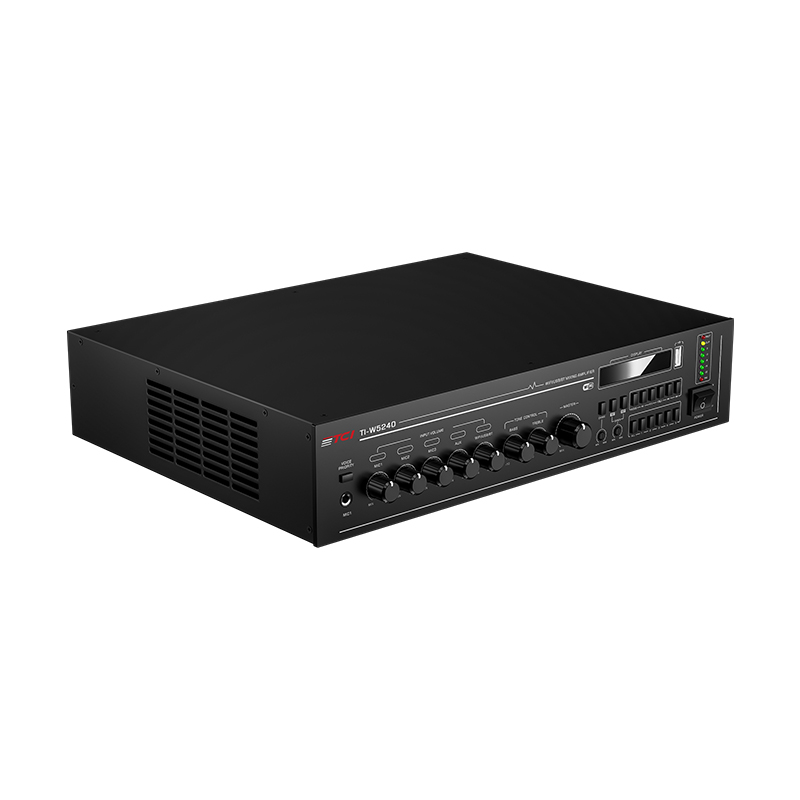

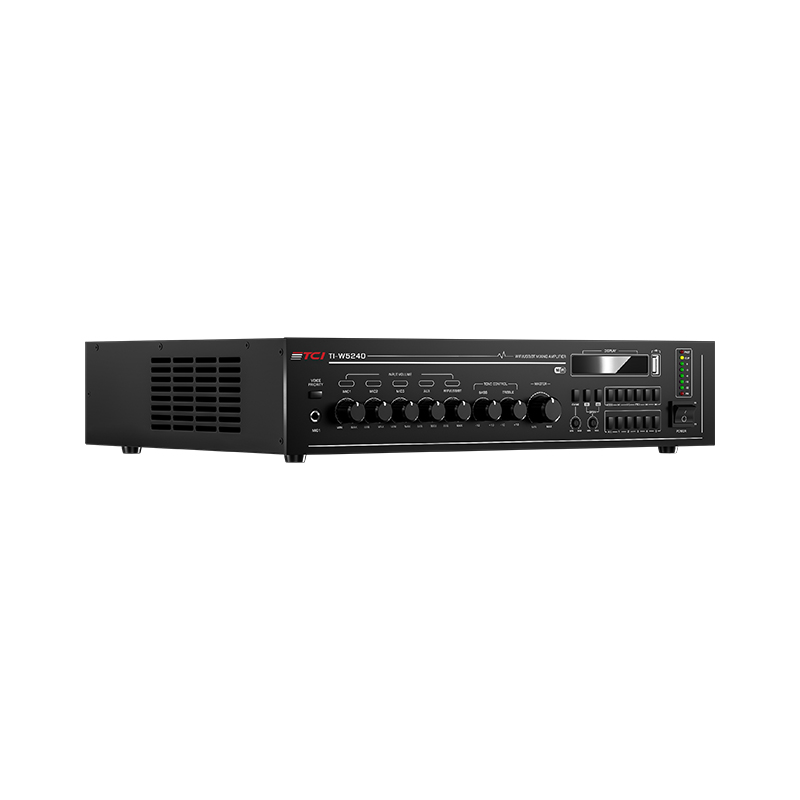

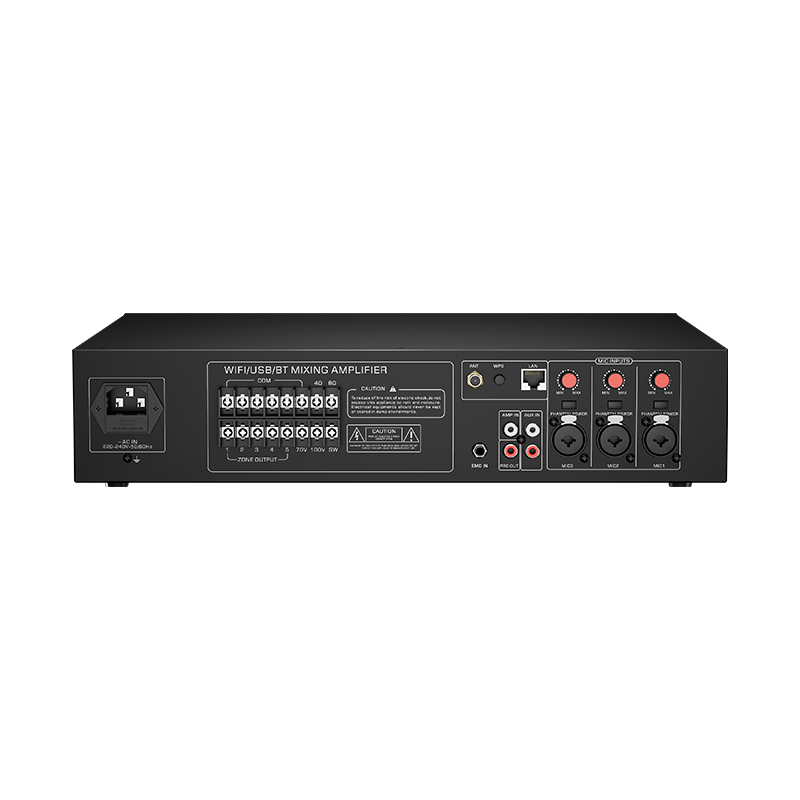

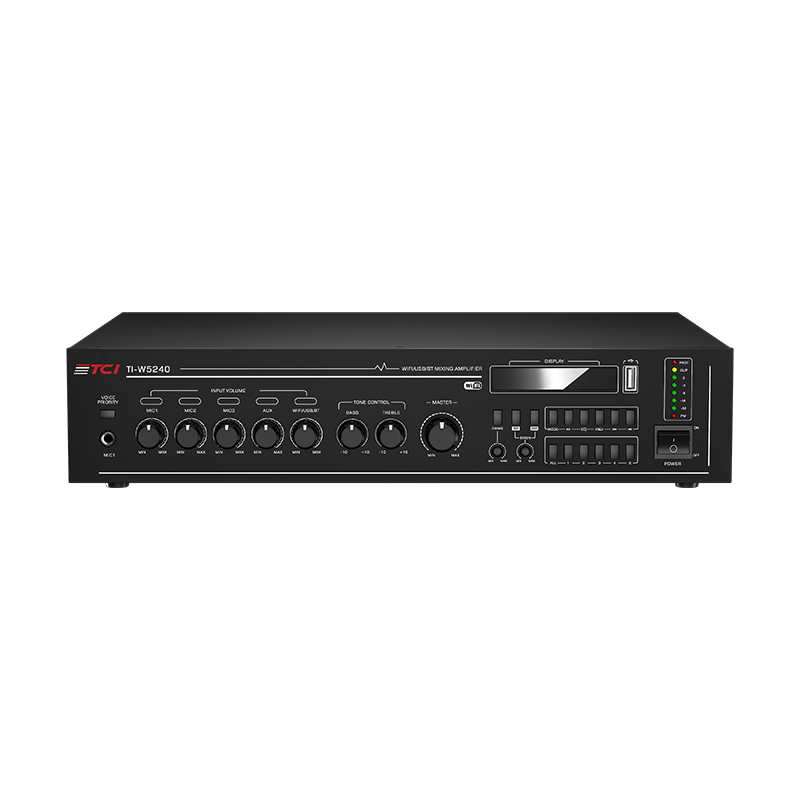

5-Zone WiFi / Bluetooth / USB Mixing Amplifier 240W
- 240W Output Power Supports 70V/100V & 4–8Ω .
- 5-Zone Selection manual zone switches on front panel.
- Built-in LAN, WiFi, Bluetooth & USB media player.
- Dedicated EMC input & MIC 1 voice priority.
- 3 XLR/6.35mm inputs supporting 48V phantom power.
The TCI-W5240 is a high-performance 240W public address mixing amplifier designed for background music distribution and commercial sound broadcasting. It features a 5-zone 100V speaker selector alongside standard 70V/100V and 4–8 Ohm output options.
Equipped with built-in WiFi streaming, Bluetooth, and USB playback, the system allows seamless mobile app control. An integrated EMC input and MIC 1 priority muting ensure full integration with emergency alarm and life safety systems.
Key Features:
- Power Output: 240W RMS at 70V/100V and 4–8 Ohms.
- Zone Control: 5 independent 100V speaker zones with manual front switches.
- Audio Sources: WiFi (App Control), Bluetooth, USB media player, and RJ45 port.
- Microphone Inputs: 3 inputs with selectable 48V Phantom Power.
- Priority System: MIC 1 voice priority and dedicated EMC emergency override.
- Tone & Signaling: BASS/TREBLE controls, built-in Chime, Siren, and master volume.
- Protections: Full electronic thermal, short-circuit, and overload protection.
|
Model |
TI-W5120 |
TI-W5240 |
TI-W5350 |
|
Rated Power |
120W |
240W |
350W |
|
Speaker Output Mode |
Low impedance:4 & 8 ohms (Ω) |
||
|
Voltage line:70V & 100V |
|||
|
WiFi Solution |
Legacy Wireless Hi-Fi System |
||
|
WiFi APP Name |
Legacy Player |
||
|
WiFi APP Version |
Android, iOS |
||
|
Wi-Fi Mode |
Wi-Fi 8.2.11 b/g/n(AP/STA modes supported) |
||
|
Music Format |
Supported with MP3,WMA,ACC(ACC+),Apple lossless,ALAC,FLAC,APE,WAV |
||
|
EMC Input |
Receive EMC/alarm signal (6.35 jack * 1) |
||
|
Frequency Response |
60 Hz ~ 20k Hz (± 3 dB) |
||
|
T.H.D |
<1% at 1kHz,1/3 rated power |
||
|
S/N |
≥75dB |
||
|
Tone Control |
BASS:100 Hz (± 10 dB) , TREBLE:10k Hz (± 10 dB) |
||
|
Audio Input |
MIC,AUX, USB, BLUETOOTH, WIFI |
||
|
Protection |
Short circuit,overload,high temperature |
||
|
AC Fuse |
T2A |
T4A |
T6A |
|
Power Supply |
AC 220-240V- 50/60Hz |
||
|
Power Consumption |
185W |
350W |
485W |
|
Power Cord |
(3×0.75 mm )×1.5M2 |
||
|
Dimension (HxWxD) |
100x430x340mm |
100x430x340mm |
100x430x340mm |
|
Carton Size |
185x520x435mm |
185x520x435mm |
185x520x435mm |
|
Net Weight |
9.00 kgs |
11.80 kgs |
14.30 kgs |
|
Gross Weight |
10.50 kgs |
13.30kg |
15.80 kgs |
Suitable Applications
Technical Specifications for Tender
The Public Address Mixing Amplifier shall deliver a rated output of 240W RMS, supporting 70V/100V line and 4–8 Ω low-impedance speaker outputs. The unit shall feature a 5-zone 100V speaker selector with manual front-panel controls.
Integrated audio sources shall include WiFi streaming (app-controlled), Bluetooth, USB media player, and a rear RJ45 Ethernet connection. Inputs shall support three 48V Phantom Power microphone jacks, MIC 1 voice priority muting, and a dedicated EMC emergency alarm input for system override. The unit shall include master volume, independent BASS/TREBLE controls, built-in Chime/Siren generators, and full electronic protection circuits.
Approved Model: TCI-W5240 or engineer-approved equivalent.
