TCI-100VA Audio Signal Converter
Features
- Model: TCI-100VA
- Function: Converts speaker level to line level
- Application: Adds zones to existing speaker systems
- Compatibility: Supports 70V and 100V PA systems
- Inputs: Two Phoenix connectors
- Outputs: 2-channel unbalanced RCA terminals
- Cable Management: Integrated system
- Mounting: Multiple configurations
- Frequency Response: Wide bandwidth
- Power: No external power is required
- Design: Compact chassis
- Certification: CE standards
- Description
- Specifications
- Equipments
- Downloads
Description
The TCI-100VA is designed to convert a high 100V audio signal to a line-level signal.
No power is needed, which will be very helpful for the public address audio distribution system, it can make the system connection very easy and flexible.
Ideal for signal transmission over long distances or supplying an auxiliary output from PA amplifiers or a 100V audio signal source to the units with a line input.
And very useful if extending or adding to existing installs as it negates the need to run new cables from the existing amplifier or main equipment, simply tag onto the 100V loudspeaker circuit and feed the output into a local amplifier.
Audio Applications
System Isolation
Level Matching
Add a Zone Anywhere a Speaker System Exists
|
Specification |
|
|
Model |
TCI-100VA |
|
System |
2CH High Level to Line Level Converter |
|
Chassis Color |
Black |
|
Chassis Material |
Aluminum |
|

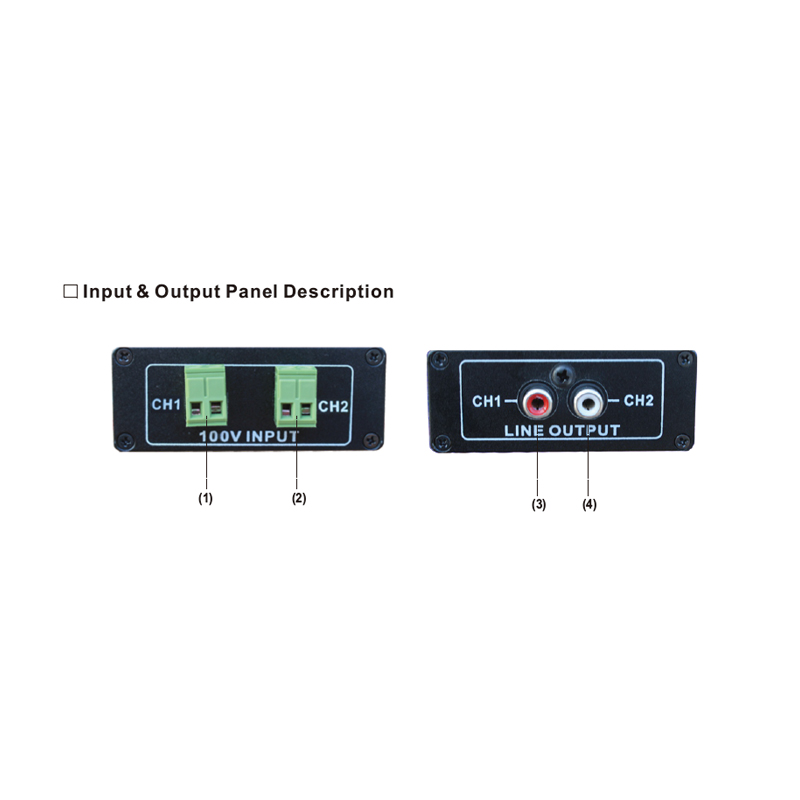

Input |
High Level Input: Phoenix connector - Qty 2 |
|
Output |
Line Level Output: RCA connector - Qty 2 |
|
Power Requirement |
None |
|
Dimension |
136mm(W) x 80mm(D) x 30mm(H) |
|
Net weight |
0.45kg |
