TCI-202C 2CH All-in-One Digital Media Player

Features

Standard cabinet-type design 1U
All-in-one audio source player with 2 channels
Channel A: CD/BT/USB with OLED screen,
Channel B: BT/USB/FM/AM with an OLED screen.
Dual LCD English display.
Support CD, CDR, CDRW, MP3, WAV, WMA, FLAC, APE
With infrared remote-control function
Very convenient button operation in front panel.
Compliance: CE standards

Description
Specifications
Equipments
Downloads

Description

The TCI-202C 2-Channel Media Player is a versatile, all-in-one audio source device designed to streamline your audio experience. It integrates a range of functionalities into a single, compact unit with two distinct channels:

Channel A features a CD player, USB/MP3 player, and Bluetooth receiver, providing a comprehensive suite of playback options for your audio needs.

Channel B combines a USB/MP3 player, Bluetooth receiver, and a tuner with FM, AM, and RDS capabilities, ensuring you have access to a wide array of radio stations and digital content.

With this dual-channel setup, the TCI-202C offers a seamless and convenient solution for managing and enjoying various audio sources, all within one device.

Specification
System	2-Channel Media Player
Compatible media	Channel-L: CD, USB, Bluetooth Channel-R: USB, Bluetooth, FM, AM
Screen	OLED screen x 2
Playable formats	CD: CD, CD-R, CD-RW USB: MP3, WAV, WMA, FLAC, APE
Bluetooth version	5.0 version
Frequency range	FM: 87.50 - 108.00 MHZ AM: 522 - 1620 Khz
Frequency response	20 Hz - 20 Khz (±0.5 dB)
S/N ratio	More than 105 dB
T.H.D	Less than 0.005%

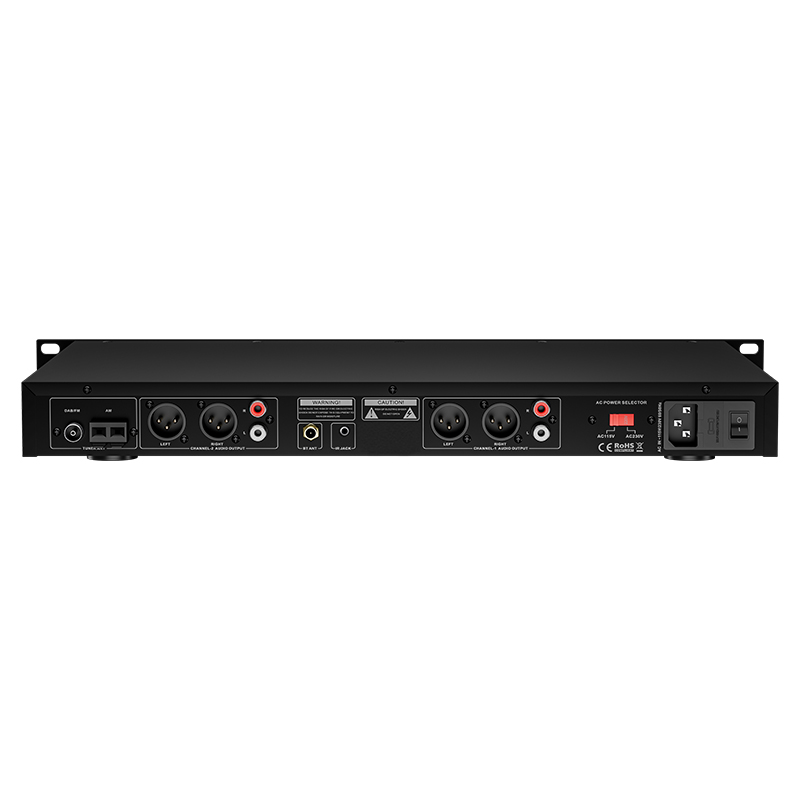

Unbalanced out L/R	RCA terminal x 2 Load impedance: Over 10 kΩ/kohms Output level: 2 Vrms (Max. 10 dBu) at 10 kΩ/kohms load
Balanced out L/R	XLR terminal x 2 (1:GND, 2:Hot, 3:Cold) Load impedance: Over 600Ω/ohms Output level:8.23 dBu (Max. 24 dBu) at 600Ω/ohms load
Power supply	AC 115/230V 60/50 Hz with selector
Power consumption	30W (0.5W standby)
Product size	372x267x49mm
Carton size	520x355x117mm
Net weight	3.40kg
Gross weight	4.10kg
