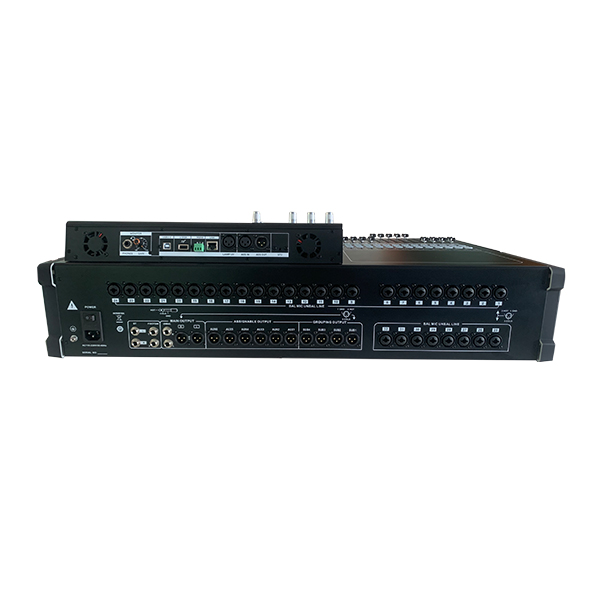

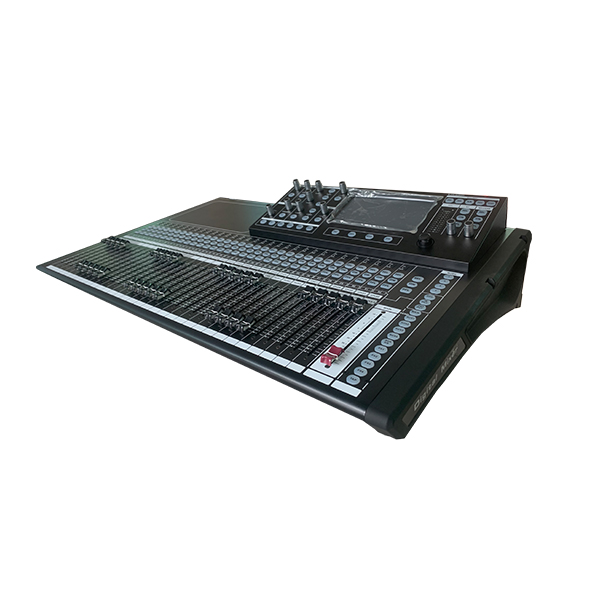

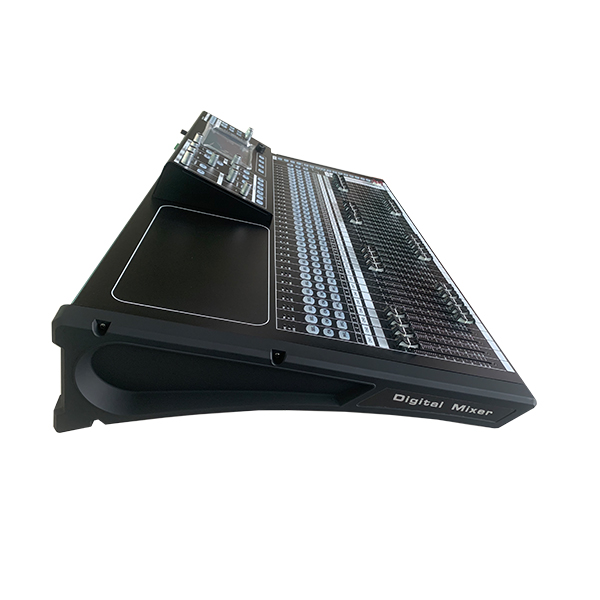

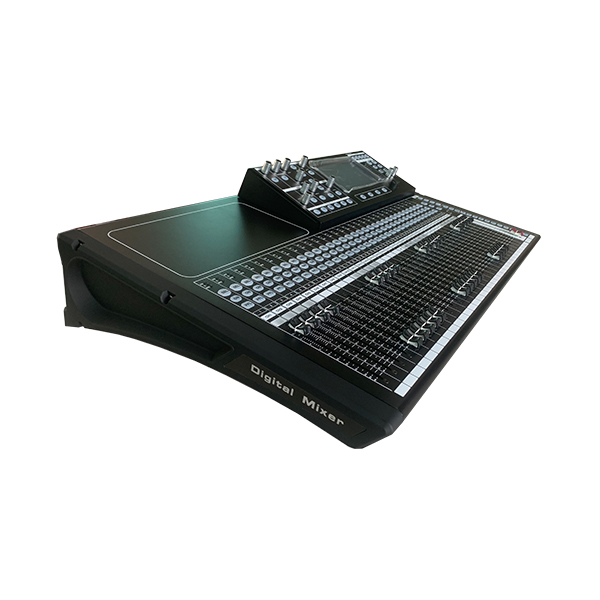

TCI-32DM Digital Mixer 32CH touch screen

Features

32 MIC/Line, including stereo, and digital inputs
Linux-based OS with a fast 17-second boot
Independent +48V phantom power
Built-in compressor, high/low-pass filters, 5-band
Digital MIC gain control, panning adjustment,
33 motorized 100mm faders with signal and peak
16 outputs: main L/R, AUX, group, monitor, and AES.
Output processing: high/low-pass filters, 15-31 band
4 quick scene recall modes, 100 scene storage
Integrated sound card for MP3 and PC playback.
Customizable user-defined layers and output
Multi-system control (iOS, Android, Windows)
7-inch capacitive touchscreen (1024x600 resolution).
Certified to CE standards

Description
Specifications
Equipments
Downloads

This versatile and feature-packed audio device offers professional-grade performance for demanding audio environments. With a robust Linux operating system, it ensures secure, stable, and virus-free operation. The upgraded 4-core CPU enables quick 17-second boot times and fast processing for efficient workflow management.

Key Features:

Comprehensive Input Options: 32 MIC/Line inputs, including stereo (6.5mm and 3.5mm) and digital inputs (AES/sound card, MP3).
Precise Control: Includes panning adjustment, digital MIC gain control, and stereo joint adjustment for flexible input management.
Phantom Power: Independent +48V phantom power for each MIC channel.
Advanced Sound Processing: Built-in compressor, high/low pass filters, 5-band parametric EQ, delay, and output channel sound/image balance adjustments.
User-Friendly Interface: Features quick copy functions, multi-function knobs, and a multi-function menu for each channel.
Motorized Faders: Equipped with 33 ALPS 100mm electric faders, each with signal and peak lights for precise control.
Flexible Output Configuration: 16 outputs, including main L/R, 6 AUX outputs, 4 group outputs, stereo monitor output, and AES output.
Output Processing: Includes high/low pass filtering, 15-31 band parametric EQ, compressor, delay, and phase adjustments.
Scene Management: 4 quick scene recall modes, 100 scene storage, seamless switching, and customizable scene names.
Integrated Sound Card: Direct MP3 playback and PC music streaming capabilities.
Customizable Layers: User-definable layers and output blending editing features.
Multi-System Control: Compatible with iOS, Android, and Windows, with options for wired or wireless network adjustment.
7-inch Capacitive Touchscreen: High-resolution 1024x600 display for intuitive operation.

This device combines comprehensive input/output options, advanced processing capabilities, and user-friendly features, making it an ideal choice for professionals seeking reliable and versatile audio solutions.

Model	TCI-32DM
Signal Inputs	32 MIC/Line inputs, 1 stereo input (6.5mm & 3.5mm), digital inputs (AES/sound card, MP3)
Operating System	Linux-based, secure, virus-resistant, fast boot (17 seconds)
Processor	4-core CPU, 1 GHz main frequency
Input Channel Control	Panning adjustment, digital MIC gain, odd-even stereo joint adjustment
Phantom Power	+48V, independent control for each MIC channel
Sound Processing	Built-in compressor, high/low-pass filters, 5-band parametric EQ, delay, output sound/image balance
Channel Interface	33 ALPS 100mm motorized faders with signal and peak lights, multi-function knob
Signal Outputs	16 outputs: main L/R, 6 AUX, 4 group, stereo monitor, AES
Output Processing	High/low-pass filtering, 15-31 band parametric EQ, compressor, delay, phase
Scene Management	4 quick scene recall modes, 100 scene storage, customizable names, seamless switching
Recording Function	Digital recording capability
Sound Card	Built-in, supports MP3 and direct PC music playback
Control System Compatibility	iOS, Android, Windows; supports wired and wireless network adjustment
Display	7-inch capacitive touchscreen, 1024x600 resolution
User-Defined Layers	Customizable layers and output blending capabilities
Additional Features	FX foot switch interface, RS232/TCP central control, multi-function menu, mute, monitor
