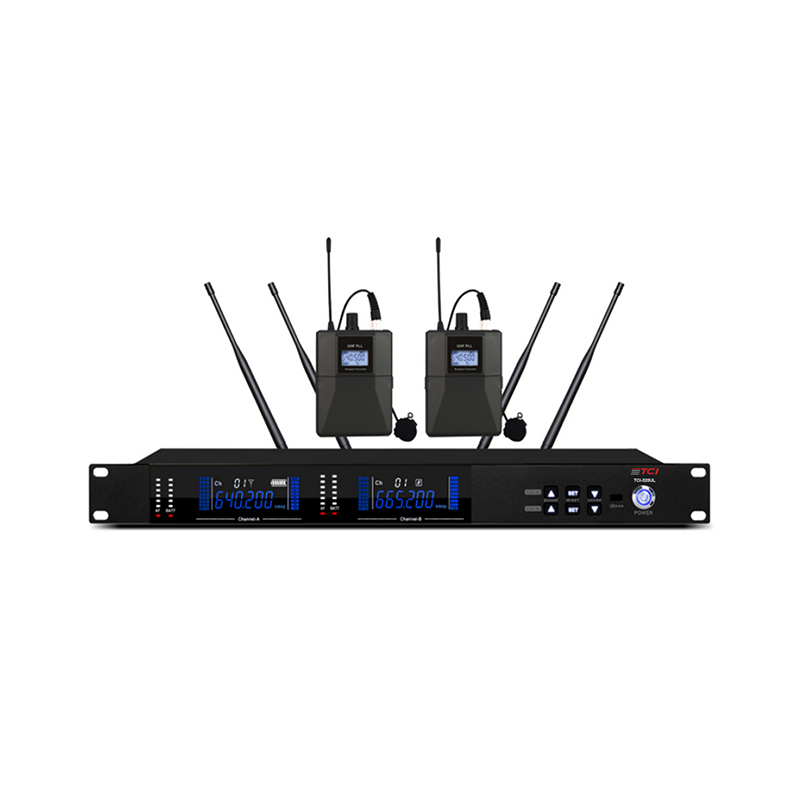

TCI-320UE Dual Headset UHF Wireless Microphone
Features
- Model: TCI-320UH
- Type: Dual-channel headset
- Frequency Band: UHF, 500-980 MHz
- Number of channels: 2*100CH
- Reception: Dual true diversity
- Frequency Synthesis: PLL phase-locked loop
- Power Consumption: 5W
- Frequency Response: 40 Hz - 18 kHz
- Frequency Binding: Infrared
- Working Distance: 60-200 m
- Battery: AA x 2, 6-8 hours
- Microphone Options: Handheld, desktop, lapel, headset
- Sound Quality: Pure and powerful
- Applications: Professional performances, KTV
- Compliance: CE standards
- Description
- Specifications
- Equipments
- Downloads
Description
The TCI-320UE is a dual handheld microphone system operating in the UHF (ultra-high frequency) band, featuring advanced dual true diversity reception and PLL (phase-locked loop) multi-channel frequency synthesis technology. This sophisticated setup provides 200 channels in total, with 100 channels available for each microphone, ensuring optimal signal clarity and minimizing frequency interruptions.
Equipped with a SCAN function, the system automatically detects the cleanest available frequency. By pressing the SET key, users can easily lock in the best frequency for reliable performance.
The V/A screen offers clear, at-a-glance information on channel numbers and operating frequencies. It includes an 8-level RF signal strength display, an 8-level audio level display, a channel menu, and a mute status indicator, ensuring comprehensive monitoring and easy adjustments.
The TCI-320UH also provides both balanced and unbalanced output ports, accommodating various equipment connection needs and enhancing its versatility for different audio setups.
|
System |
|
|
Frequency range |
500-980Mhz |
|
Oscillation mode |
Phase-locked loop frequency synthesis (PLL) |
|
Number of channels |
200 |
|
Frequency response |
40Hz-18KHz (±2dB) |
|
Working distance |
60-200M in open space |
|
Frequency interval |
250 KHz |
|
Carrier wave stability |
±5PPm≤10KHz |
|
Image interference ratio |
>80dB |
|
SNR |
>105dB(1KHz-A) |
|
Sensitivity |
-105dBm (12dB S/N AD) |
|
THD |
0.5% (ref. ±40KHz deviation. 1KHz tone) |
|
Muted method |
Mute and sound code locked loop |
|
Microphone |
|
|
Frequency range |
500-980Mhz |
|
Output power |
High-power 30mW, low-power 3mW |
|
Harmonic radiation |
<-55dBc |
|
Maximum deviation |
±70KHz |
|
Maximum input sound pressure |
140dB SPL |
|
Oscillation mode |
FM PLL frequency synthesis |
|
Frequency adjustment |
Automatic locking and manual adjustment of receiver working channels |
|
Battery |
2 AA1.5V batteries |
|
Weight |
0.32Kg (Hand-held mic), 0.06Kg (lapel mic), excluding battery |
|
Size |
(L)241mm× (D) 34mm (hand-held) |
|
(L)83mm×(W)63mm×(T)22mm (lapel) |
|
|
Receiver |
|
|
Display |
LCD screen |
|
Working temperature |
-10℃+60℃ (not battery operating temperature) |
|
Case |
Galvanized cold-rolled plate |
|
Audio output level |
±40 KHz (The deviation is in 1k signal, load) balanced 600Ω; load-13dBV, unbalanced 600 Ω, load -2 dBV |
|
Output impedance |
Respectively balanced: 200Ω; 2 integrated unbalanced: 600 Ω |
|
Balanced output |
1 pin grounded line (output wire shielded), 2 pin audio, 3 pin audio |
|
Output connector |
Balanced XLR connector |
|
Unbalanced output |
TRS6.35mm connector |
|
Power supply |
DC 12V ---1A |
|
Size |
420×179×44mm(L×D×H) |
|
Weight |
1.95KG (excluding antenna) |
